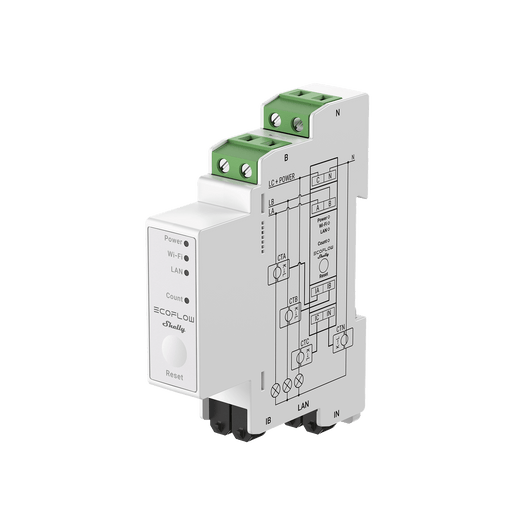

Smart Meter — Monitor Your Power Smartly
Why you need it?
Real-time, whole-home energy monitoring | Automatic detection of surplus energy | Enables zero-feed-in solar power usage | Optimised with EcoFlow's OASIS algorithm

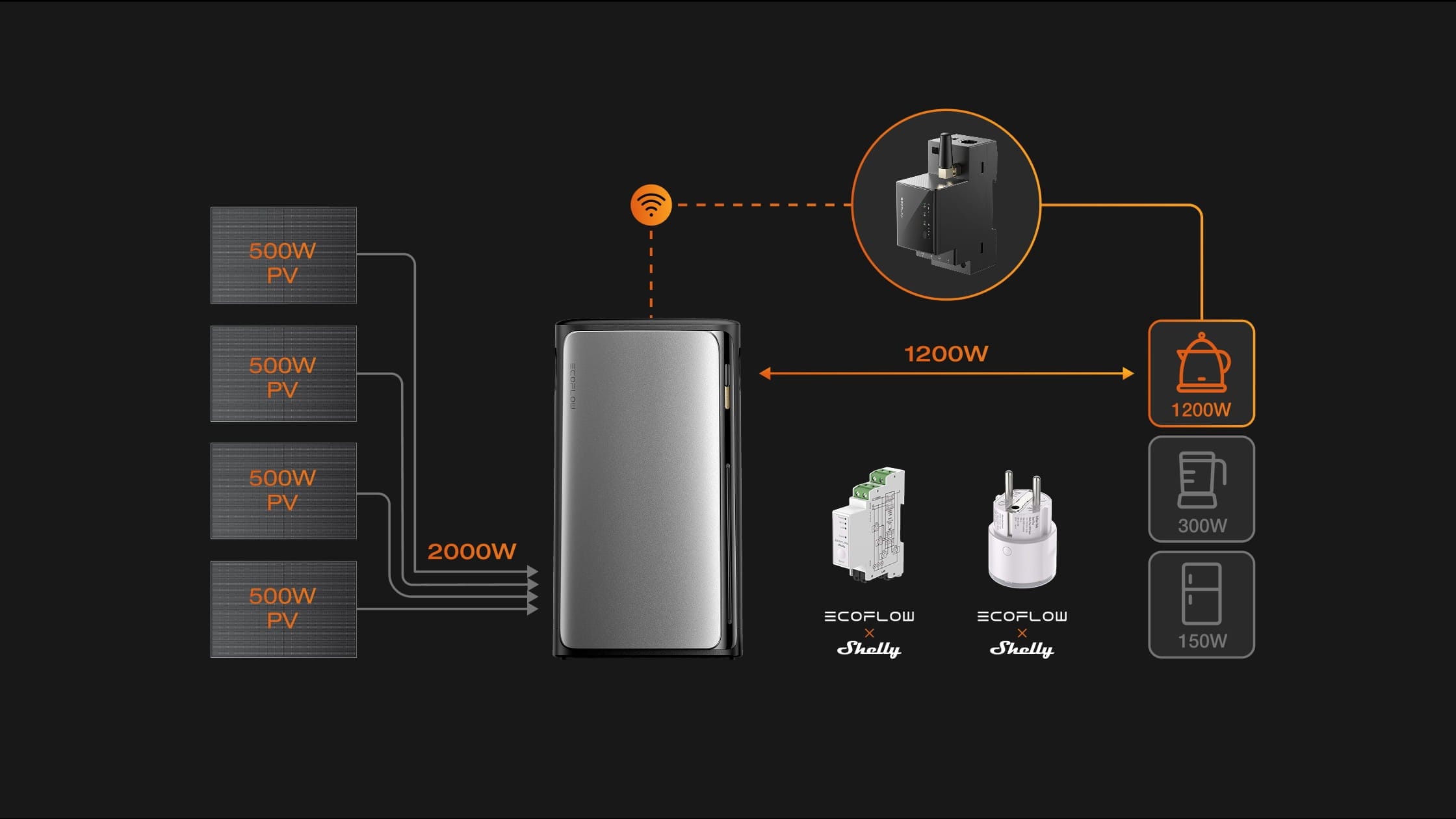

Implement Whole-Home Intelligent Power Monitoring for the STREAM System
Home appliances such as lights and built-in kitchen appliances cannot be monitored by plug-and-play smart plugs. In this case, a smart meter is needed to monitor the electricity of the entire house, thereby enabling the system to automatically schedule.

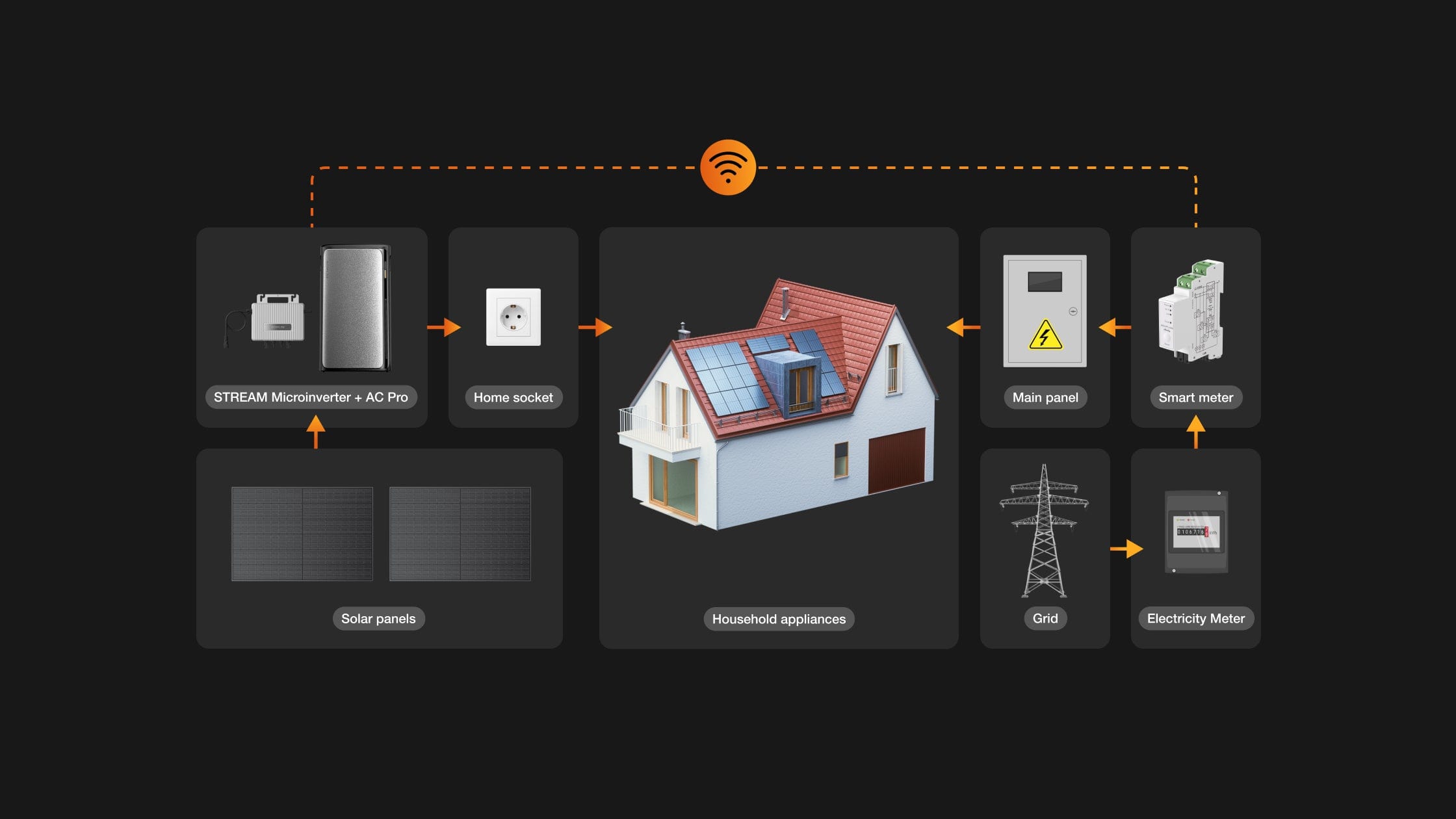

Pair with STREAM AC Pro for Photovoltaic System Energy Storage
Due to its AC coupling design, STREAM AC Pro can be easily retrofitted to existing solar systems, allowing for plug-and-play energy storage integration. By simply adding a smart meter, the system can determine when to charge and when to utilize AC Pro for household electricity offset, maximizing solar energy utilization.

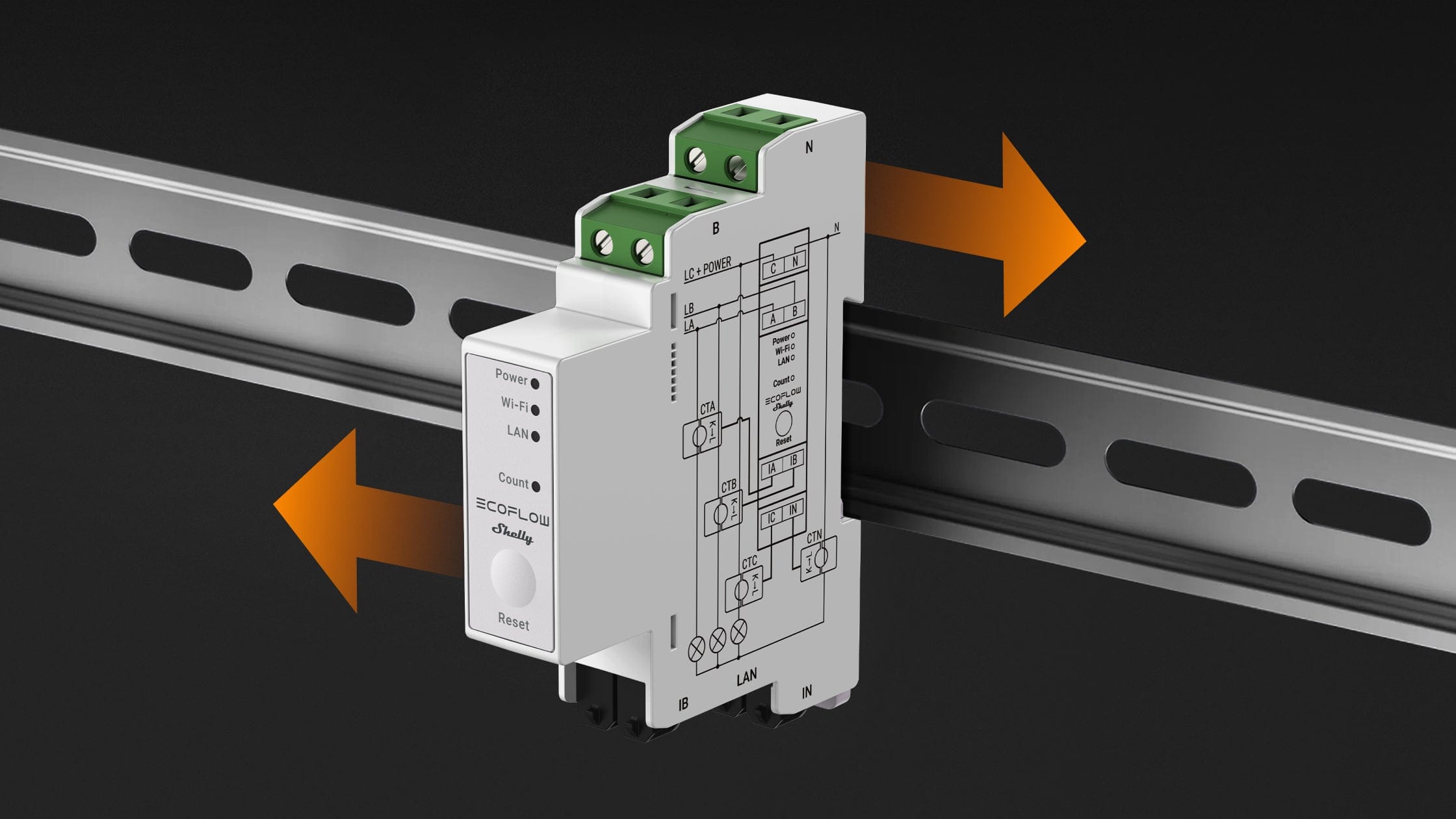

Easy to Install
It only requires simple installation and connection, without incurring high installation costs or the need for circuit modifications.
Unlock the Full Power of OASIS with Smart Synergy
Your EcoFlow OASIS experience reaches its true potential when paired with our AI-Optimized Smart Meter – the missing link that transforms data into actionable intelligence. Like a symphony conductor connecting instruments to harmony, our hardware becomes the foundation for your software's brilliance. Real-time energy insights, precision load balancing, and adaptive AI predictions activate only when Smart Meter meets OASIS platform, creating a closed-loop ecosystem where every watt tells its story.
The Smart Meter isn't an accessory – it's the kinetic key to OASIS's latent power. Purchase yours today and watch your energy ecosystem awaken.
Smart Meter × Smart Plug: Zero Feed-in. All Solar, All Yours¹
Specs
Size (HxWxD):
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight:
62 ±1 g / 2.19 ±0.05 oz
Mounting:
DIN rail
Screw terminals max torque:
0.4 Nm / 4.43 lbin
Conductor cross section:
0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace lugs)
Conductor stripped length:
6 to 7 mm / 0.24 to 0.28 in
Shell material:
Plastic
Color:
White
Ambient temperature:
-20 °C to 40 °C / -5 °F to 105 °F
Humidity:
30 % to 70 % RH
Max. altitude:
2000 m / 6562 ft
Power supply voltage AC:
100 - 260 V, 50/60 Hz
Power supply voltage DC:
N/A
Power consumption:
< 3 W
External protection:
Tripping characteristic B or C,
16A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3
Internal-temperature sensor:
Yes
Voltmeters (RMS for each phase):
100 - 260 V
Voltmeters accuracy:
±1 %
mmeters (RMS via CT for each phase and the Neutral):
0-120 A
Compatible CT
Ammeters accuracy:
±1 % (2 - 120 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)
Power and energy meters:
- Active and apparent power
- Active and apparent energy
- Power factor
- Fundamental active and fundamental reactive energy
Channel-to-channel calibration minimum load
500 W per channel
No load threshold:
30 VA per channel
Measurement data storage:
At least 60 days of 1 min data resolution
Data export:
- CSV for PQ recorded values
- JSON format export through RPC
RF band:
2400 - 2495 MHz
Max. RF power:
<20 dBm
Wi-Fi protocol:
802.11 b/g/n
Wi-Fi Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions)
Bluetooth Protocol:
4.2
Bluetooth Range:
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions)
CPU:
ESP32-D0WDQ6
Flash:
16 MB
Webhooks (URL actions):
20 with 5 URLs per hook
Scripting:
Yes
MQTT:
Yes
CoAP:
No
1. After installing STREAM Series battery and compatible Smart Meter, users can connect appliances to wall outlets via compatible Smart Plugs, enabling remote on/off control and operation scheduling through the EcoFlow app—thereby minimizing solar energy waste.
